Процедура обращения к объектной модели Application Server через REST API Historian
// 20201116160606
// http://localhost:32569/Historian/v2/TagGroups
{
"@odata.context": "http://localhost:32569/Historian/v2/$metadata#TagGroups",
"value": [
{
"GroupID": "1000-1",
"GroupName": "Public Groups",
"Type": "1000004",
"ParentID": "0",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1')/Groups"
},
{
"GroupID": "1000-2",
"GroupName": "All Analog Tags",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-2')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-2')/Groups"
},
{
"GroupID": "1000-3",
"GroupName": "All Discrete Tags",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-3')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-3')/Groups"
},
{
"GroupID": "1000-4",
"GroupName": "All String Tags",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-4')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-4')/Groups"
},
{
"GroupID": "1000-5",
"GroupName": "All Analog Summary Tags",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-5')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-5')/Groups"
},
{
"GroupID": "1000-6",
"GroupName": "All Event Tags",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-6')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-6')/Groups"
},
{
"GroupID": "1000-7",
"GroupName": "InTouch Nodes",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-7')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-7')/Groups"
},
{
"GroupID": "1000-8",
"GroupName": "System Status Tags",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-8')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-8')/Groups"
},
{
"GroupID": "1000-19",
"GroupName": "All State Summary Tags",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-19')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-19')/Groups"
},
{
"GroupID": "1000-20",
"GroupName": "Replication Sources",
"Type": "1000000",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-20')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-20')/Groups"
},
{
"GroupID": "1000-1021",
"GroupName": "MXTest",
"Type": "1999023",
"ParentID": "1",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1021')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1021')/Groups"
},
{
"GroupID": "2000-1",
"GroupName": "Private Groups",
"Type": "1000003",
"ParentID": "0",
"Scope": "Private",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('2000-1')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('2000-1')/Groups"
}
]
}

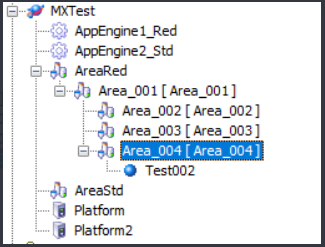

В выделенной области вы можете видеть имя Galaxy.
Затем запросом
http://localhost:32569/Historian/v2/TagGroups('1000-1021')/Tags
// 20201116162235
// http://localhost:32569/Historian/v2/TagGroups('1000-1021')/Groups
{
"@odata.context": "http://localhost:32569/Historian/v2/$metadata#TagGroups",
"value": [
{
"GroupID": "1000-1022",
"GroupName": "Platform",
"Type": "1999001",
"ParentID": "1021",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1022')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1022')/Groups"
},
{
"GroupID": "1000-1023",
"GroupName": "Platform2",
"Type": "1999001",
"ParentID": "1021",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1023')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1023')/Groups"
},
{
"GroupID": "1000-1024",
"GroupName": "AppEngine1_Red",
"Type": "1999003",
"ParentID": "1021",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1024')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1024')/Groups"
},
{
"GroupID": "1000-1025",
"GroupName": "AreaRed",
"Type": "1999013",
"ParentID": "1021",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1025')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1025')/Groups"
},
{
"GroupID": "1000-1026",
"GroupName": "AppEngine2_Std",
"Type": "1999003",
"ParentID": "1021",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1026')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1026')/Groups"
},
{
"GroupID": "1000-1027",
"GroupName": "AreaStd",
"Type": "1999013",
"ParentID": "1021",
"Scope": "Public",
"Tags@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1027')/Tags",
"Groups@odata.navigationLink": "http://localhost:32569/Historian/v2/TagGroups('1000-1027')/Groups"
}
]
}
